Appendix - 123794 - Tributary to Blunt Creek

Site Location

PSCIS crossing 123794 is located on tributary to Blunt Creek at km 19.3 of the Blunt Creek FSR. The site is accessed via Moricetown Road through Witset approximately 40km north of Smithers. The culvert is located approximately 670m upstream from the confluence with a major tributary to Blunt Creek. Blunt Creek flows east into Harold Price Creek which in turn flows into the Suskwa River. The Suskwa River enters the Bulkley River near Hazleton BC. Blunt Creek FSR is the responsibility of the FLNR - Skeena Stikine District.

Background

At crossing 123794, tributary to Blunt Creek is a second order stream. Watershed area upstream of the crossing is estimated at 0.9km² ranging from a maximum elevation of 1260m to 1070m at PSCIS crossing 123794. Upstream of the Blunt Creek FSR, dolly varden have been previously recorded as present (MoE 2020a). MoE (2020a) also indicates that salmon (unidentified species) have been recorded in an adjacent tributary with cutthrout recorded nearby within multiple streams connecting to the greater stream network just downstream of the subject tributary. PSCIS crossing 123785 has been ranked as a barrier and is located on the tributary that the subject stream drains into. It is located approximately 250m north-east on a spur road (R09533) accessed at km 18.3 of the Blunt Creek FSR.

PSCIS stream crossing 123794 was ranked as a high priority for follow up by Irvine (2018) because there was salmon noted nearby, due to the presence of a small lake upstream, and because PSCIS data indicated a larger channel containing habitat rated as high value. Although on a smaller stream, the crossing’s location on a forest service road was considered advantageous as these sites are often eligible for funding through forestry supported funds such as the Land Based Investment Fund if restoration of fish passage is warranted. A map of the watershed is provided in map attachment 093M.103.

Stream Characteristics at Crossing

At the time of the survey, the culvert under Blunt Creek FSR was un-embedded, non-backwatered and ranked as a barrier to upstream fish passage acoording to the provincial protocol (MoE 2011). The pipe was 0.9m in diameter with a length of 13m, a culvert slope of 5%, a stream width ratio of 1.9 and an outlet drop of 0.25m (Table 5.15). Water temperature was 9\(^\circ\)C, pH was 7.7 and conductivity was 73uS/cm.

Stream Characteristics Downstream

The stream was surveyed downstream from the culvert for 250m (Figures 5.16 - 5.17). Total cover amount was rated as moderate with undercut banks dominant. Cover was also present as small woody debris, large woody debris, and overhanging vegetation (Table 5.16). The average channel width was 1.7m, the average wetted width was 1.8m and the average gradient was 5%. The dominant substrate was gravels with cobbles subdominant. Within the area surveyed, the stream had good flow volume and frequent patches of gravel suitable for spawning for coho and resident salmonids. The habitat was rated as moderate value.

Stream Characteristics Upstream

The stream was surveyed immediately upstream from 123794 for approximately 525m (Figures 5.18 - 5.19). Within the area surveyed, total cover amount was rated as moderate with undercut banks dominant. Cover was also present as small woody debris, large woody debris, deep pools, and overhanging vegetation (Table 5.16). The average channel width was 1.9m, the average wetted width was 1.6m and the average gradient was 9.6%. The dominant substrate was gravels with cobbles subdominant. The channel was noted as having good complexity and abundant gravels suitably sized for both coho and resident salmonid spawning. Some small woody debris/large woody debris steps (30-50cm in height) were present intermittently starting approximately 400m above the culvert. A fish (~120mm) was observed 500m upstream of the culvert. A 4m high falls was noted at the top end of the site and represents an impassable barrier to upstream migration. Habitat value was rated as moderate for salmonid spawning and rearing.

Table 5.17 presents preliminary fish passage modelling data for crossing 123794 with spawning and rearing habitat estimated for chinook, coho, sockeye and steelhead. Modelled estimates of the total length of salmon or steelhead habitat upstream of the crossing before potential barriers are 0km of potential spawning habitat and 0km of potential rearing habitat.

Structure Remediation and Cost Estimate

Replacement of PSCIS crossing 123794 with a embedded culvert (streambed simulation - 3m span) is recommended in the long term. The cost of the work is estimated at $100,000 for a cost benefit of 5.2 linear m/$1000 and 10m²/$1000.

Conclusion

There is 0.5km of habitat upstream of crossing 123794 with habitat value rated as moderate value for salmonid rearing and spawning. Blunt Creek FSR is the responsibility of FLNR - Skeena Stikine District. The crossing was ranked as a moderate priority for proceeding to design for replacement. Future fish sampling is recommended upstream and downstream of the crossing to scope for anadromous species and evaluate potential impacts of the culvert on fish densities. Although the upstream channel appears to split into three channels just upstream of the crossing, it is also recommended that PSCIS crossing 123785 (located on the spur road R09533 accessed from km 18.3 of the Blunt Creek FSR) be scoped as a habitat confirmation candidate at the same time that other fish passage assessment work is conducted in the area.

Table 5.15: Summary of fish passage assessment for PSCIS crossing 123794.

Location and Stream Data		Crossing Characteristics	–
Date	2020-08-24	Crossing Sub Type	Round Culvert
PSCIS ID	123794	Diameter (m)	0.9
External ID	–	Length (m)	13
Crew	AI, KP	Embedded	No
UTM Zone	9	Depth Embedded (m)	–
Easting	616100	Resemble Channel	No
Northing	6106763	Backwatered	No
Stream	Tributary to Blunt Creek	Percent Backwatered	–
Road	Blunt Creek FSR	Fill Depth (m)	0.75
Road Tenure	FLNR Nadina 9111	Outlet Drop (m)	0.25
Channel Width (m)	1.73	Outlet Pool Depth (m)	0.43
Stream Slope (%)	5	Inlet Drop	No
Beaver Activity	No	Slope (%)	5
Habitat Value	Medium	Valley Fill	Deep Fill
Final score	31	Barrier Result	Barrier
Fix type	Replace Structure with Streambed Simulation CBS	Fix Span / Diameter	3

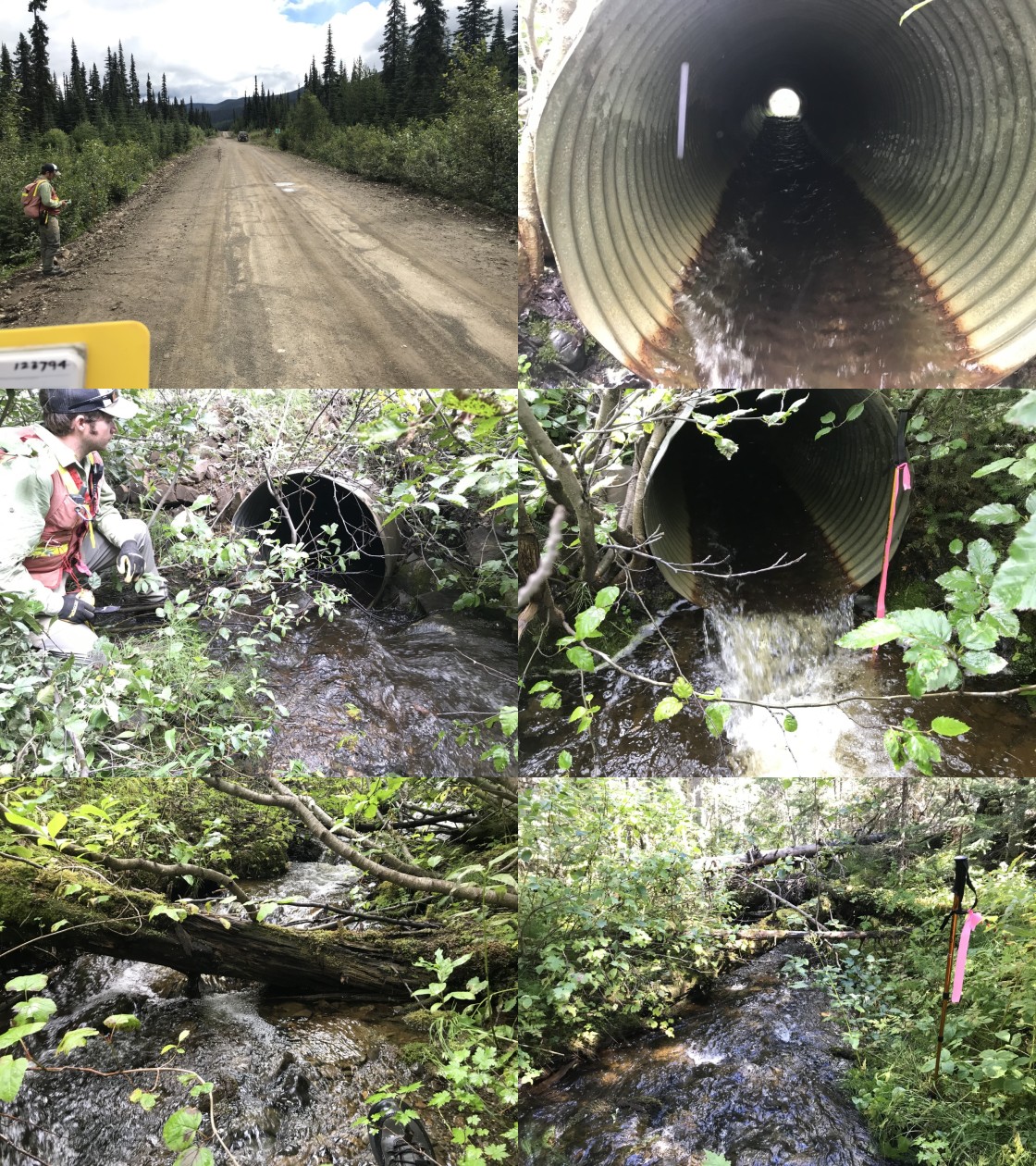

Photos: From top left clockwise: Road/Site Card, Barrel, Outlet, Downstream, Upstream, Inlet.
Comments: Smaller stream with good flow. Salmon points noted in adjacent stream. Recommend sampling upstream and downstream and habitat assessment of stream at associated PSCIS crossing 123785.

Table 5.16: Summary of habitat details for PSCIS crossing 123794.

Site	Location	Length Surveyed (m)	Channel Width (m)	Wetted Width (m)	Pool Depth (m)	Gradient (%)	Total Cover	Habitat Value
123794	Downstream	250	1.7	1.8	0.3	5	moderate	moderate
123794	Upstream	525	1.9	1.6	0.2	9.6	moderate	moderate

Table 5.17: Summary of fish habitat modelling for PSCIS crossing 123794.

Habitat	Potential	Remediation Gain	Remediation Gain (%)
Salmon Network (km)	0.5	0.5	100
Salmon Lake Reservoir (ha)	–	0.0	–
Salmon Wetland (ha)	–	0.0	–
Steelhead Network (km)	2.1	1.2	57
Steelhead Lake Reservoir (ha)	2.9	0.0	0
Steelhead Wetland (ha)	1.8	0.0	0
CH Spawning (km)	0.0	0.0	–
CH Rearing (km)	0.0	0.0	–
CO Spawning (km)	0.0	0.0	–
CO Rearing (km)	0.0	0.0	–
CO Rearing (ha)	–	–	–
SK Spawning (km)	0.0	0.0	–
SK Rearing (km)	0.0	0.0	–
SK Rearing (ha)	–	–	–
ST Spawning (km)	0.0	0.0	–
ST Rearing (km)	0.0	0.0	–
All Spawning (km)	0.0	0.0	–
All Rearing (km)	0.0	0.0	–
All Spawning and Rearing (km)	0.0	0.0	–
* Model data is preliminary and subject to adjustments including incorporating area based estimates.
† Modelled rearing habitat estimates include linear lengths of centrelines within wetlands for coho and within lakes >100ha (multiplied by 1.5) for sockeye.
‡ Remediation Gain is an estimate of the amount of habitat to be gained by providing access above the crossing. This assumes that all upstream habitat is currently unavailable and that all modelled unassessed crossings located upstream would prevent further passage.

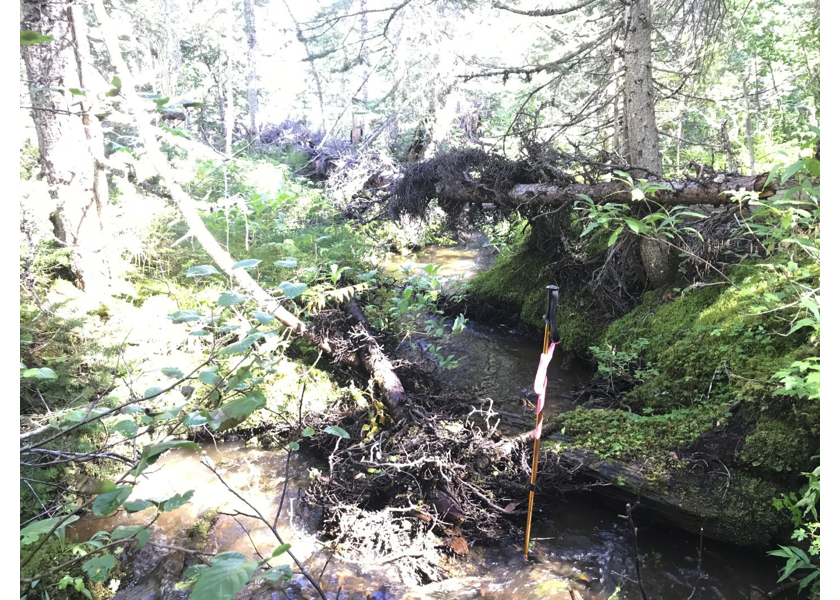

Figure 5.16: Habitat downstream of PSCIS crossing 123794.

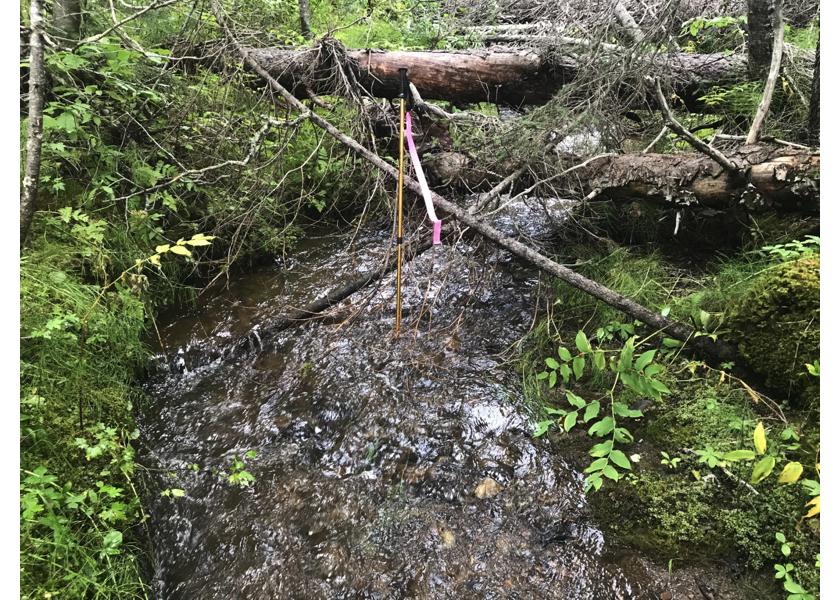

Figure 5.17: Habitat downstream of crossing 123794.

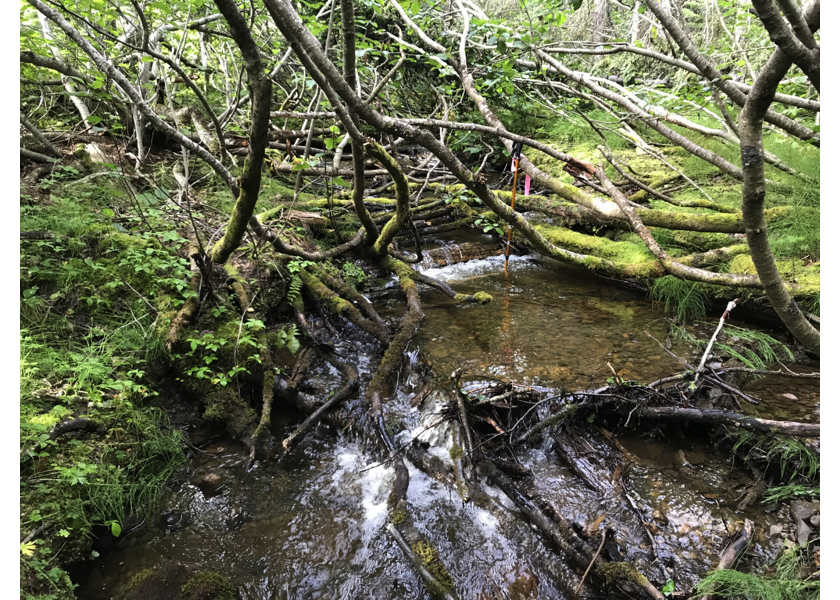

Figure 5.18: Habitat upstream of PSCIS crossing 123794.

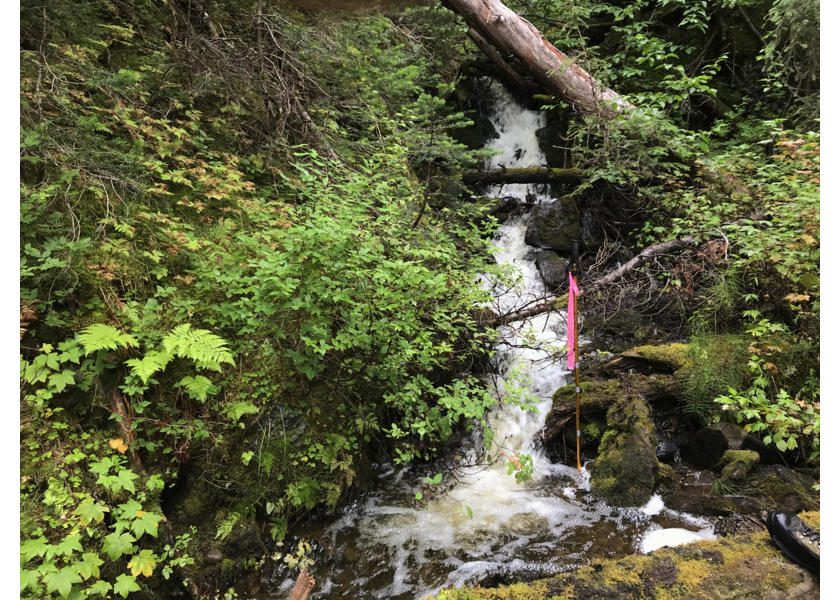

Figure 5.19: Cascade upstream of PSCIS crossing 123794.
